USB TYPE MICRO-B 3
Power
USB 3.0 Micro-B Connector
10
Pin Count
5V
Max Voltage
900mA
Max Current
5 Gbps
Max Data Rate

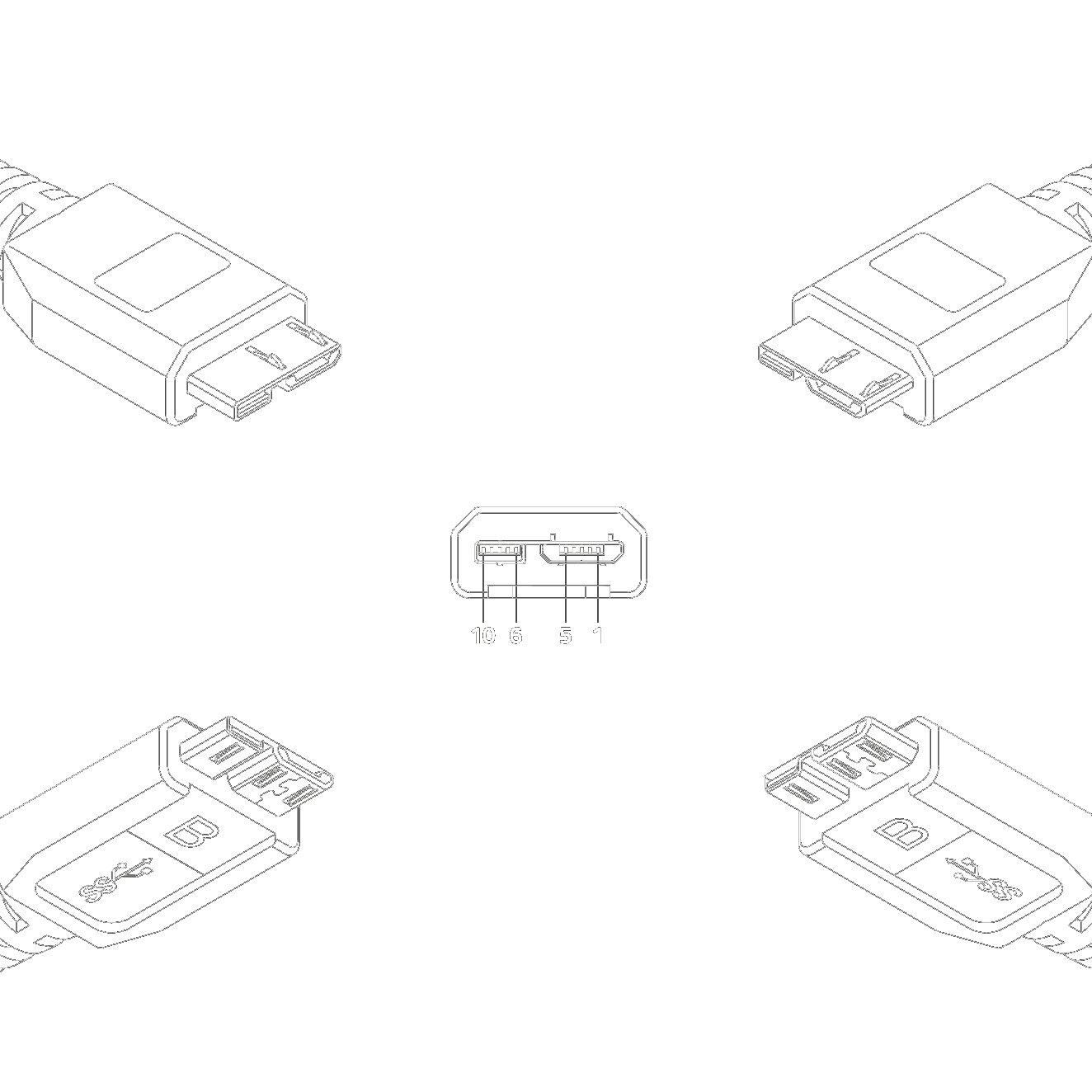

Pinout Configuration
Pin assignments, signal names, and wire color coding.
| Pin | Name | Notes | Wire Color |
|---|---|---|---|
| 1 | VBUS |
5V POWER
|
RED |
| 2 | D- |
USB 2.0 DIFFERENTIAL PAIR
|
WHITE |
| 3 | D+ |
USB 2.0 DIFFERENTIAL PAIR
|
GREEN |
| 4 | ID |
OTG IDENTIFICATION
|
- |
| 5 | GND |
GROUND FOR POWER RETURN
|
BLACK |
| 6 | MICB_SSTX- |
SUPERSPEED TX DIFFERENTIAL PAIR
|
BLUE |
| 7 | MICB_SSTX+ |
SUPERSPEED TX DIFFERENTIAL PAIR
|
YELLOW |
| 8 | GND_DRAIN |
GROUND FOR SUPERSPEED SIGNAL RETURN
|
GRAY |
| 9 | MICB_SSRX- |
SUPERSPEED RX DIFFERENTIAL PAIR
|
PURPLE |
| 10 | MICB_SSRX+ |
SUPERSPEED RX DIFFERENTIAL PAIR
|
ORANGE |
Physical Specifications
Physical dimensions, mounting, and construction details.
| Connector Type | Male |
| Physical Size | 12mm x 6.85mm |
| Mounting Type | Surface Mount |
| Form Factor | Rectangular |
| Contact Material | Gold |
| Contact Plating | Gold |
| Temperature Range | -25°C to +85°C |
Electrical Specifications
Electrical characteristics and signal transmission capabilities.
| Impedance | 90 Ohm |
| Signal Type | Digital |
| Shielding | Yes |
| Max Distance | 3m |
| Durability | 10000 cycles |
Industry & Standards
Industry domain, standards body, and implementation details.
| Industry Domain | Consumer Electronics |
| Primary Application | High-speed data transfer and charging |
| Common Uses | External hard drives, cameras, mobile devices |
| Year Introduced | 2008 |
| Standard Body | USB-IF |
| Implementation Cost | Medium |
| Complexity Level | Medium |
Description
Detailed overview and key characteristics of the connector.
| USB 3.0 Micro-B connector with additional pins for SuperSpeed data transmission. |
