DisplayPort
Audio/Video
DisplayPort
20
Pin Count
3.3V
Max Voltage
500mA
Max Current
77.4 Gbps
Max Data Rate

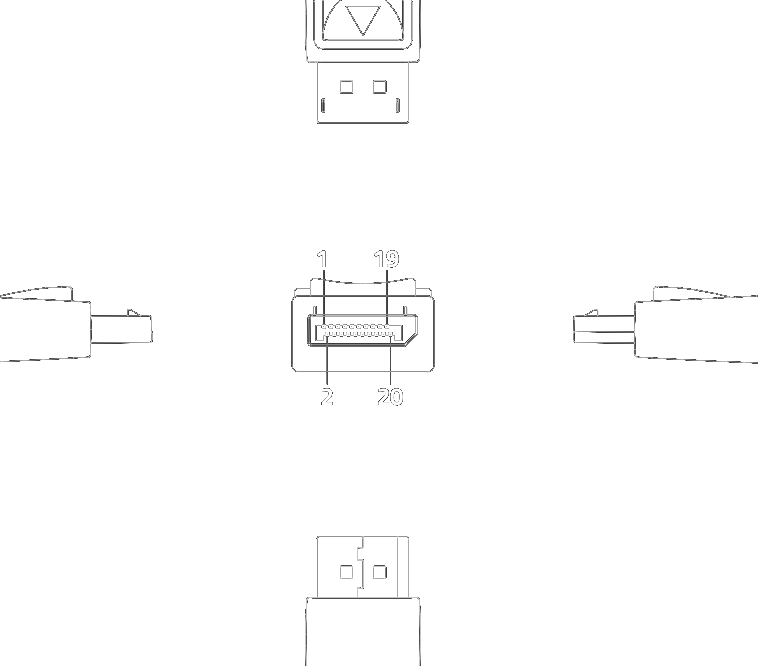

Pinout Configuration
Pin assignments, signal names, and wire color coding.
| Pin | Notes |
|---|---|
| 1 |
SRC
OUT - ML_LANE 0 (+)
RCV
IN - ML_LANE 3 (-)
|
| 2 |
SRC
GND - GROUND
RCV
GND - GROUND
|
| 3 |
SRC
OUT - ML_LANE 0 (-)
RCV
IN - ML_LANE 3 (+)
|
| 4 |
SRC
OUT - ML_LANE 1 (+)
RCV
IN - ML_LANE 2 (-)
|
| 5 |
SRC
GND - GROUND
RCV
GND - GROUND
|
| 6 |
SRC
OUT - ML_LANE 1 (-)
RCV
IN - ML_LANE 2 (+)
|
| 7 |
SRC
OUT - ML_LANE 2 (+)
RCV
IN - ML_LANE 1 (-)
|
| 8 |
SRC
GND - GROUND
RCV
GND - GROUND
|
| 9 |
SRC
OUT - ML_LANE 2 (-)
RCV
IN - ML_LANE 1 (+)
|
| 10 |
SRC
OUT - ML_LANE 3 (+)
RCV
IN - ML_LANE 0 (-)
|
| 11 |
SRC
GND - GROUND
RCV
GND - GROUND
|
| 12 |
SRC
OUT - ML_LANE 3 (-)
RCV
IN - ML_LANE 0 (+)
|
| 13 |
SRC
CONFIG - CONFIG1
RCV
CONFIG - CONFIG1
|
| 14 |
SRC
CONFIG - CONFIG2
RCV
CONFIG - CONFIG2
|
| 15 |
SRC
I/O - AUX CH (+)
RCV
I/O - AUX CH (+)
|
| 16 |
SRC
GND - GROUND
RCV
GND - GROUND
|
| 17 |
SRC
I/O - AUX CH (-)
RCV
I/O - AUX CH (-)
|
| 18 |
SRC
IN - HOT PLUG DETECT
RCV
OUT - HOT PLUG DETECT
|
| 19 |
SRC
RNT - RETURN
RCV
RTN - RETURN
|
| 20 |
SRC
PWR OUT - DP_PWR
RCV
PWR OUT - DP_PWR
|
Physical Specifications
Physical dimensions, mounting, and construction details.
| Connector Type | Male |
| Physical Size | 15x4.5mm |
| Mounting Type | Cable Mount |
| Form Factor | Standard |
| Contact Material | Gold |
| Contact Plating | Gold |
| Temperature Range | -10°C to 85°C |
Electrical Specifications
Electrical characteristics and signal transmission capabilities.
| Impedance | 100Ω |
| Signal Type | Digital |
| Shielding | Yes |
| Max Distance | 15m |
| Durability | 10000 cycles |
Industry & Standards
Industry domain, standards body, and implementation details.
| Industry Domain | Audio/Video |
| Primary Application | Display connectivity |
| Common Uses | Monitors, graphics cards, laptops |
| Year Introduced | 2006 |
| Standard Body | VESA |
| Implementation Cost | Medium |
| Complexity Level | Medium |
Description
Detailed overview and key characteristics of the connector.
| High-performance display interface with daisy-chaining capability |
