USB-C
Power
Data
Universal Serial Bus Type-C
24
Pin Count
20V
Max Voltage
5A
Max Current
40 Gbps
Max Data Rate

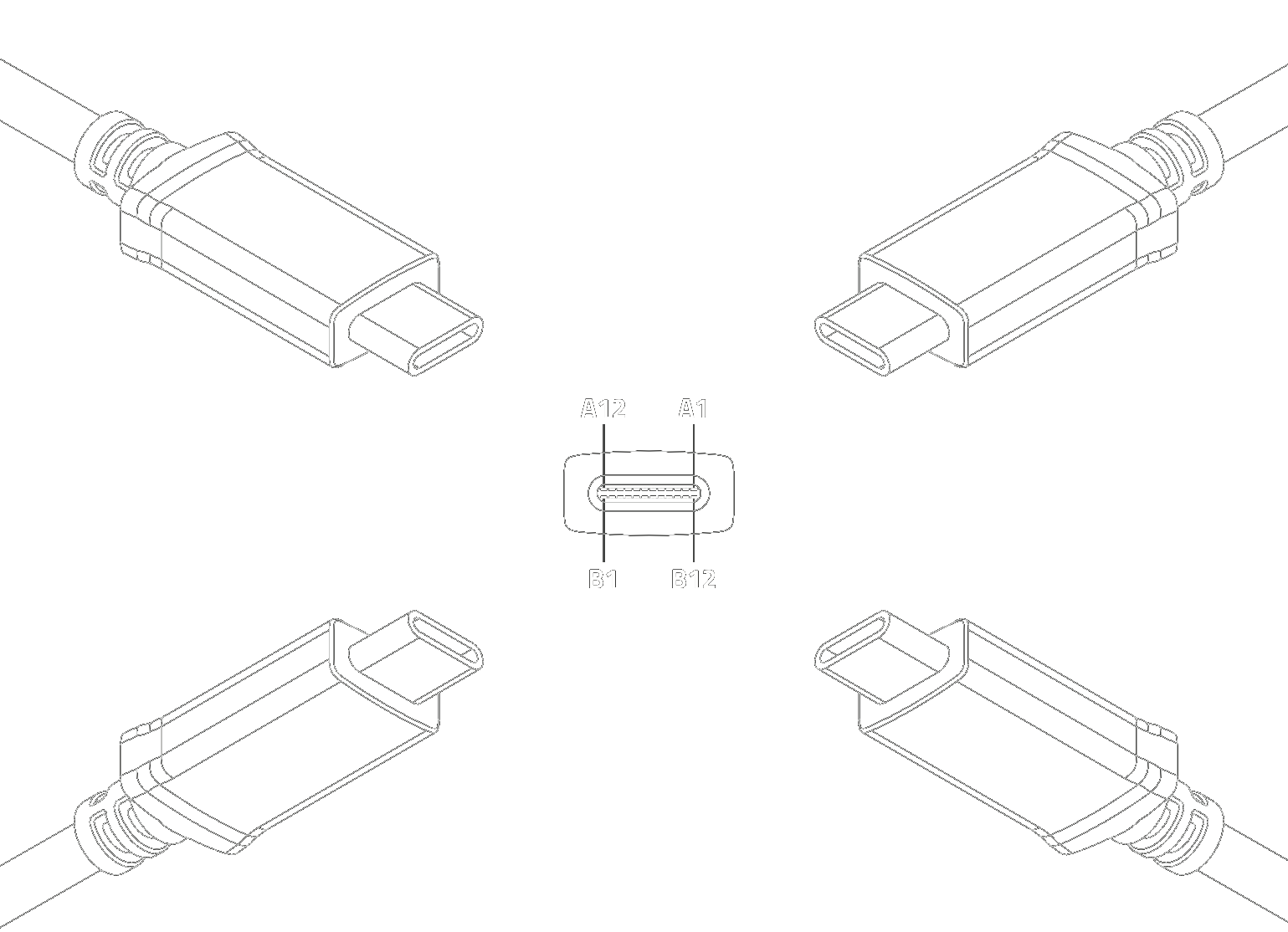

Pinout Configuration
Pin assignments, signal names, and wire color coding.
| Pin | Name | Notes |
|---|---|---|
| A1 | GND |
GROUND
|
| A10 | RX2- |
USB3.1 OR ALTERNATE MODE
|
| A11 | RX2+ |
USB3.1 OR ALTERNATE MODE
|
| A12 | GND |
GROUND
|
| A2 | TX1+ |
USB3.1 OR ALTERNATE MODE
|
| A3 | TX1- |
USB3.1 OR ALTERNATE MODE
|
| A4 | VBUS |
POWER
|
| A5 | CC1 |
CC OR VCONN
|
| A6 | D+ |
DATA+ (USB 2.0)
|
| A7 | D- |
DATA- (USB 2.0)
|
| A8 | SBU1 |
ALTERNATE MODE
|
| A9 | VBUS |
POWER
|
| B1 | GND |
GROUND
|
| B10 | RX1- |
USB3.1 OR ALTERNATE MODE
|
| B11 | RX1+ |
USB3.1 OR ALTERNATE MODE
|
| B12 | GND |
GROUND
|
| B2 | TX2+ |
USB3.1 OR ALTERNATE MODE
|
| B3 | TX2- |
USB3.1 OR ALTERNATE MODE
|
| B4 | VBUS |
POWER
|
| B5 | CC2 |
CC OR VCONN
|
| B6 | D+ |
DATA+ (USB 2.0)
|
| B7 | D- |
DATA- (USB 2.0)
|
| B8 | SBU2 |
ALTERNATE MODE
|
| B9 | VBUS |
POWER
|
Physical Specifications
Physical dimensions, mounting, and construction details.
| Connector Type | Male |
| Physical Size | 8.4x2.6mm |
| Mounting Type | Cable Mount |
| Form Factor | Standard |
| Contact Material | Gold |
| Contact Plating | Gold |
| Temperature Range | -20°C to 85°C |
Electrical Specifications
Electrical characteristics and signal transmission capabilities.
| Impedance | N/A |
| Signal Type | Digital |
| Shielding | Yes |
| Max Distance | 2m |
| Durability | 10000 cycles |
Industry & Standards
Industry domain, standards body, and implementation details.
| Industry Domain | Consumer Electronics |
| Primary Application | Universal connectivity |
| Common Uses | Data transfer, power delivery, video output |
| Year Introduced | 2014 |
| Standard Body | USB-IF |
| Implementation Cost | Medium |
| Complexity Level | Medium |
Description
Detailed overview and key characteristics of the connector.
| Reversible connector supporting high-speed data and power delivery |
